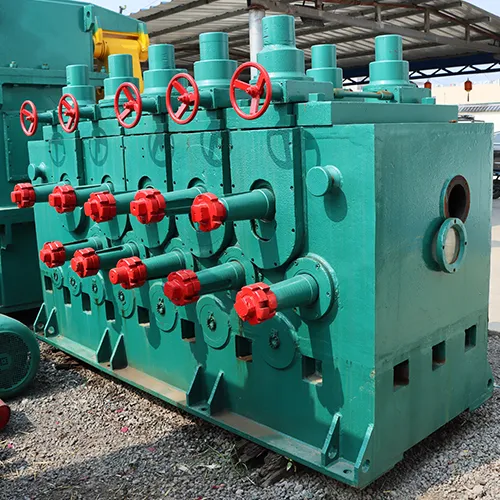

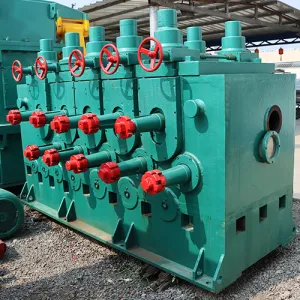

1. Overview of Automatic Straightening Machine

An Automatic Straightening Machine is a highly efficient and intelligent piece of industrial equipment designed to automatically correct the curvature or deformation of metal materials such as wires, bars, tubes, and profiles. Unlike traditional manual or semi-automatic straightening devices, automatic straightening machines integrate feeding, straightening, length measurement, cutting, and collection into a single automated system. Through advanced control technology, the entire process operates continuously without manual intervention, ensuring high precision and production efficiency.

Automatic straightening machines are widely used in industries including construction, metallurgy, automotive, aerospace, machinery manufacturing, and electrical engineering, where large quantities of straightened metal materials are required for further processing such as welding, cutting, bending, or assembly.

2. Working Principle of Automatic Straightening Machine

The working principle of an automatic straightening machine is based on the elastic-plastic deformation of metal materials. When a bent wire or rod passes through a series of offset rollers arranged alternately in upper and lower rows, the material undergoes multiple reverse bending processes. This repeated bending eliminates the internal stresses that cause curvature, thus restoring the material to a straight condition.

In automatic systems, Servo Motors and PLC (Programmable Logic Controllers) precisely control roller pressure, feeding speed, and straightening force. Sensors measure the straightness of the output in real-time, automatically adjusting roller gaps and feed speed to achieve optimal results. When the preset length is reached, the cutting unit automatically cuts the material, and the collection system neatly arranges the straightened products.

3. Structure and Main Components

An automatic straightening machine typically consists of the following major components:

1. Frame (Body): The main structural support that provides mechanical stability.

2. Feeding System: Automatically draws materials into the machine, driven by servo motors.

3. Straightening Rollers: Arranged alternately; they apply force to correct bending.

4. Drive System: Includes Electric Motors, Gear Reducers, and transmission shafts ensuring synchronized roller motion.

5. Cutting System: Automatically cuts the material to the preset length using mechanical, pneumatic, or hydraulic cutters.

6. Collection System: Automatically collects and arranges straightened materials.

7. Control System: PLC or CNC-based control for speed, pressure, and precision management.

8. Lubrication and Cooling System: Ensures smooth operation and prevents overheating.

9. Safety System: Includes sensors, emergency stops, and overload protection devices.

4. Performance Characteristics and Advantages

• Full Automation: From feeding to collection, the entire process requires no manual intervention.

• High Straightening Accuracy: Computer-controlled rollers ensure consistent precision.

• High Production Efficiency: Capable of continuous operation, ideal for mass production.

• Programmable Length Control: Cutting length can be freely set via the control panel.

• Material Versatility: Suitable for steel, copper, aluminum, and stainless steel materials.

• Energy Saving and Low Noise: Optimized mechanical design and servo control reduce energy use and noise levels.

• User-Friendly Interface: Touch-screen operation and digital display simplify control.

• Self-diagnosis Function: Automatically detects faults and displays alarm information.

5. Applications of Automatic Straightening Machine

Automatic straightening machines are widely used in:

1. Steel and Metal Processing Plants: Straightening steel wires, bars, and rods.

2. Construction Industry: Preparing rebar for concrete reinforcement.

3. Automobile Manufacturing: Straightening shafts, axles, and structural components.

4. Electrical Industry: Straightening copper or aluminum conductors.

5. Machinery and Tool Production: Processing precision shafts and spindles.

6. Aerospace and Shipbuilding: Straightening high-strength alloys for structural applications.

6. Operation and Maintenance

To maintain optimal performance, operators should:

• Regularly clean the rollers and remove accumulated metal dust.

• Check lubrication levels and replenish as needed.

• Periodically inspect roller alignment and wear conditions.

• Ensure sensors, motors, and controllers function properly.

• Avoid feeding materials beyond the machine’s capacity.

• Calibrate control systems regularly for consistent accuracy.

Conclusion

The Automatic Straightening Machine represents a significant advancement in modern metal processing technology. It not only enhances production efficiency and accuracy but also reduces labor costs and operational risks. With continuous innovation in automation, AI integration, and green manufacturing, automatic straightening machines will remain indispensable equipment for industrial modernization and intelligent production in the years ahead.
