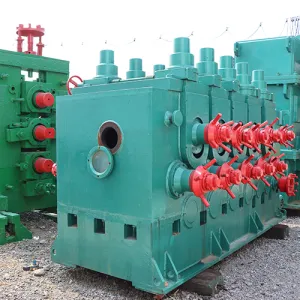

1. Overview of Industrial Straightening Machine

An Industrial Straightening Machine is a specialized piece of mechanical equipment designed to remove bending, twisting, or deformation from metal materials such as rods, bars, wires, tubes, and structural profiles. During metal production and handling processes, residual stresses and external forces often cause unwanted curvatures. The industrial straightening machine corrects these deformations by applying precise mechanical pressure through a series of rollers or dies, restoring the material’s original straightness and dimensional accuracy.

In industrial manufacturing, straightening machines play a critical role in improving material quality, ensuring geometric precision, and preparing components for subsequent processing such as cutting, welding, coating, or assembly. They are essential in sectors like steel production, construction, automotive manufacturing, aerospace, and mechanical engineering.

2. Working Principle of Industrial Straightening Machine

The working principle of an industrial straightening machine is based on the elastic and plastic deformation theory of metals. When a bent or twisted metal passes through several alternately arranged rollers, it experiences repeated bending in opposite directions. Each roller applies a controlled force that exceeds the material’s elastic limit but remains below its yield strength. This alternated deformation redistributes internal stresses and removes the curvature, resulting in a straightened material.

In advanced machines, sensors and servo-controlled systems automatically adjust roller pressure according to the material’s hardness, diameter, and straightness. This ensures consistent performance, minimal material damage, and high production efficiency.

3. Structure and Main Components

An industrial straightening machine generally consists of the following major components:

1. Frame (Body) – Provides the main structural support and stability during operation.

2. Straightening Rollers – The key working elements responsible for bending correction; made from high-strength alloy steel.

3. Feeding Mechanism – Feeds material steadily into the roller system, often driven by Servo Motors.

4. Drive System – Includes motors, gearboxes, and transmission shafts to rotate the rollers synchronously.

5. Control System – Incorporates PLCs (Programmable Logic Controllers) and touch-screen panels to set speed, pressure, and material parameters.

6. Cutting and Collection Unit – In integrated models, straightened materials are automatically cut to specified lengths and collected.

7. Cooling and Lubrication System – Minimizes friction, reduces heat, and extends component lifespan.

8. Safety Protection System – Includes emergency stop switches, protective covers, and overload sensors to ensure operator safety.

4. Classification of Industrial Straightening Machines

1. By Material Type:

• Wire Straightening Machine: For fine metal wires (e.g., steel wire, copper wire).

• Bar straightening machine: For thicker bars or rods used in construction.

• Pipe Straightening Machine: Designed for hollow metal pipes.

• Profile Straightening Machine: For H-beams, channels, and angle steels.

2. By Operating Mechanism:

• Roller-type Straightening Machine: Most common; materials pass continuously through multiple rollers.

• Hydraulic Straightening Machine: Uses hydraulic cylinders for strong, controlled correction.

• Die-type Straightening Machine: Uses custom dies to straighten materials of complex shapes.

3. By Automation Level:

• Manual Straightening Machine: Used in small workshops.

• Semi-automatic Straightening Machine: Combines manual feeding with automatic correction.

• Fully Automatic Straightening and Cutting Machine: Integrates feeding, straightening, cutting, and collecting under full automation.

5. Performance Characteristics and Advantages

• High Precision: Ensures excellent straightness with minimal residual stress.

• High Efficiency: Capable of processing several tons of metal per hour.

• Wide Material Adaptability: Suitable for different metal types and diameters.

• Energy Efficiency: Optimized transmission and intelligent drive systems reduce power consumption.

• Durability: Wear-resistant rollers and robust design extend service life.

• Automation and Intelligence: Integrated PLC and servo systems provide real-time monitoring and data feedback.

• Low Noise and Vibration: Precision alignment and balancing minimize operational noise.

6. Applications of Industrial Straightening Machines

Industrial straightening machines are widely used in:

1. Steel and Metallurgy Industry – Straightening steel bars, rods, and tubes before cutting or welding.

2. Construction and Civil Engineering – Preparing rebar for concrete reinforcement.

3. Automobile Manufacturing – Straightening axles, shafts, and suspension components.

4. Machinery Production – Straightening precision shafts and spindles before machining.

5. Electrical and Cable Industry – Processing copper and aluminum conductors.

6. Aerospace and Shipbuilding – Straightening high-strength alloy materials for structural components.

7. Operation and Maintenance Guidelines

• Keep the machine clean and free of metal debris.

• Lubricate all bearings and rollers regularly.

• Check roller alignment frequently and replace worn parts.

• Avoid overloading or using materials exceeding the machine’s specifications.

• Ensure electrical systems and sensors are functioning correctly.

• Perform periodic calibration to maintain accuracy.

Conclusion

The Industrial Straightening Machine is an essential component of modern metalworking and production industries. It ensures that materials meet strict geometric and mechanical requirements, improving both quality and efficiency. With continuous innovations in automation, intelligent control, and energy efficiency, straightening machines are expected to become even more precise, reliable, and environmentally friendly—supporting the global move toward sustainable and smart manufacturing.
