1. Overview of Roller Conveyor

A Roller Conveyor is a type of continuous material handling equipment that transports goods, workpieces, or products along a fixed path using a series of rotating rollers.
It is one of the most commonly used conveying systems in industrial automation, logistics, warehousing, steel production, and assembly lines.

The roller conveyor operates based on rolling friction rather than sliding friction, which ensures smooth transport, low energy consumption, and high load-bearing capacity.

Depending on the drive mode, it can be classified into powered (driven) and non-powered (gravity) roller conveyors.
It can handle both unit loads (like pallets, boxes, and billets) and continuous materials in various industries.

2. Working Principle of Roller Conveyor

The basic working principle of a roller conveyor is to use rotating rollers arranged at regular intervals to move materials along a path.
In a Powered Roller Conveyor, each roller is connected to a drive system—such as a motor, chain, or belt—that provides rotational motion.

When the rollers rotate, the friction between the roller surface and the goods causes the goods to move forward.
In a gravity roller conveyor, the movement relies on the inclined plane and gravity, where goods move naturally along the slope.

The conveyor speed, direction, and control depend on the motor power, roller diameter, and transmission ratio.

3. Structural Composition of Roller Conveyor

A typical roller conveyor system consists of:

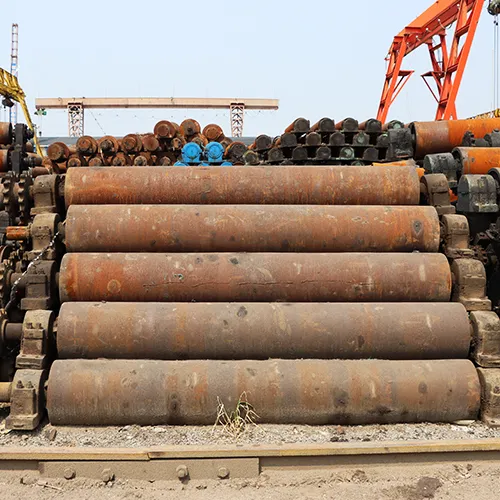

1. Rollers (Conveying Elements):
   Cylindrical components that support and move the load. Made of steel, stainless steel, or polymer.

2. Frame (Supporting Structure):
   Usually made of carbon steel or aluminum profiles; supports the rollers and ensures rigidity.

3. Drive System:
   Includes motors, chains, belts, sprockets, or gearboxes for powered systems.

4. Bearings and Shafts:
   Allow smooth rotation of rollers with minimal friction.

5. Supports and Legs:
   Adjustable structures that maintain height and balance.

6. Guides and Side Rails:
   Prevent lateral displacement of materials during transport.

7. Control System:
   For automated conveyors, PLC or sensors regulate speed, start/stop, and object spacing.

4. Types of Roller Conveyors

(1) By Drive Type

• Gravity Roller Conveyor:
  Goods move by gravity on a slightly inclined path.

• Chain-Driven Roller Conveyor:
  Power transmitted via chains for heavy-duty applications.

• Belt-Driven Roller Conveyor:
  Belt underneath the rollers provides motion, suitable for light goods.

• Motorized Roller Conveyor:
  Each roller has its own built-in motor (used in modern automated systems).

(2) By Structure

• Straight Roller Conveyor

• Curved Roller Conveyor

• Telescopic Roller Conveyor

• Lifting or Inclined Roller Conveyor

(3) By Application

• Assembly Line Conveyor

• Warehouse/Logistics Conveyor

• Steel Mill Roller Table

• Airport Baggage Conveyor

5. Technical Features and Advantages

1. High Efficiency:
   Continuous transport with minimal manual intervention.

2. Flexibility and Modularity:
   Can be combined with curves, lifts, or diverters to form complex systems.

3. Durability:
   Steel or stainless steel rollers ensure long service life.

4. Low Maintenance:
   Simple structure with easy access for cleaning and replacement.

5. Energy Saving:
   Gravity and friction drive reduce energy consumption.

6. Wide Load Capacity Range:
   Capable of handling from light packages to heavy steel billets.

6. Application Fields

Roller conveyors are widely used in:

• Manufacturing and Assembly Lines — transferring workpieces between processes.

• Warehousing and Distribution Centers — handling cartons, pallets, and boxes.

• Steel and Metal Processing Plants — conveying billets, slabs, and bars.

• Automotive Industry — moving chassis and components.

• Airport Logistics — baggage handling systems.

• Food and Beverage Industry — packaging and pallet transport.

7. Operation and Maintenance

To ensure reliable operation:

• Regularly check roller rotation and bearing lubrication.

• Keep the roller surface clean to avoid slippage.

• Adjust the chain or belt tension periodically.

• Inspect frame alignment to prevent mis-tracking.

• Monitor motor temperature and noise for early fault detection.

Conclusion

The Roller Conveyor is an indispensable component of modern material handling systems.
It provides efficient, reliable, and flexible transportation for a wide range of products across industries.

With advancements in automation, IoT, and intelligent control, roller conveyors are evolving toward smart, energy-efficient, and modular systems, driving the future of industrial logistics and production automation.
